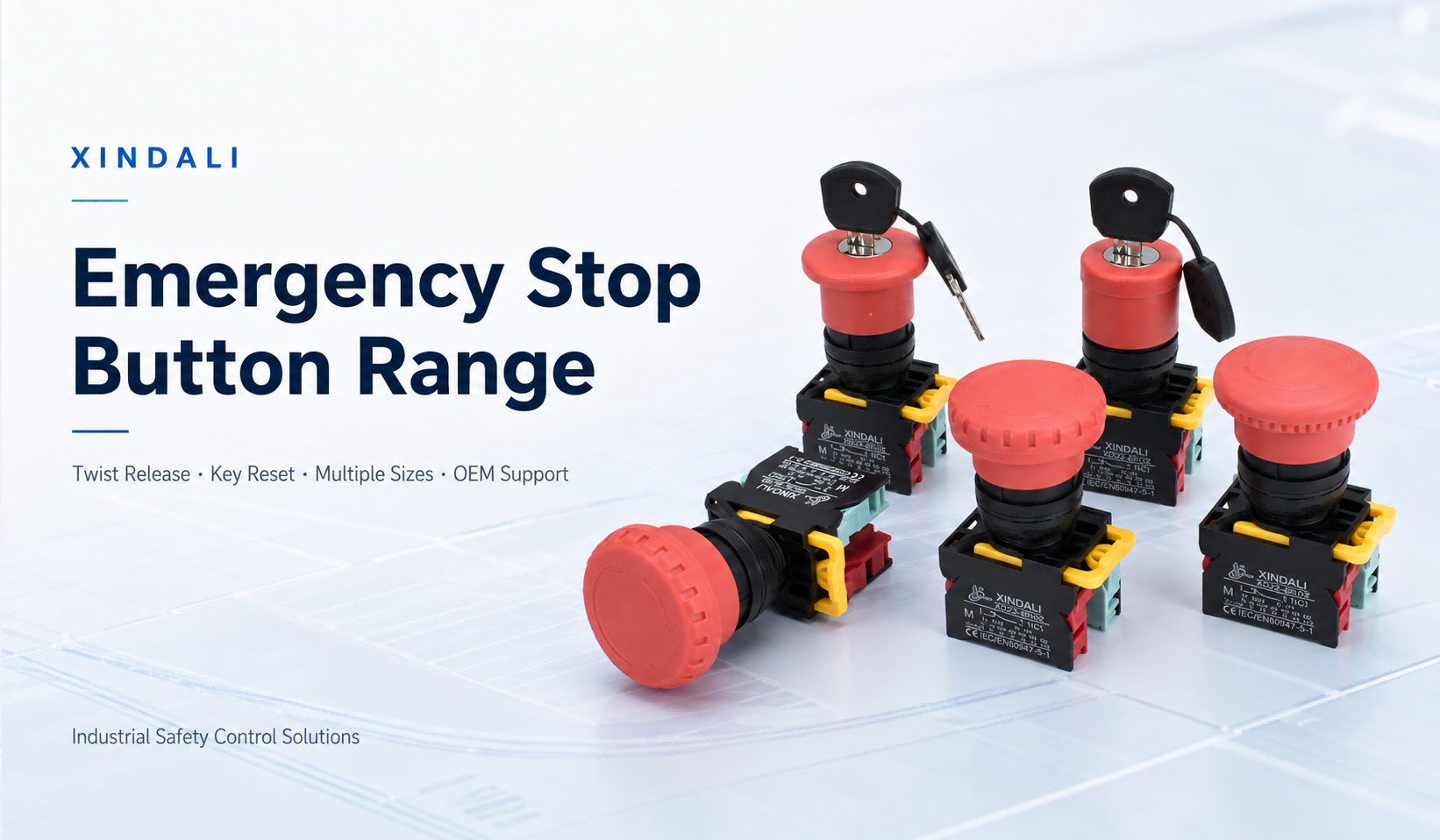

Explore XINDALI Emergency Stop Button Series
Choose from standard 22 mm industrial emergency stops, modern plastic platforms, compact metal switches, large mushroom-head operators and key-reset models.
LAY4 Emergency Stop Buttons
A standard industrial solution for machinery panels, electrical cabinets and control stations using modular contact blocks.
View LAY4 Series →
LAY5 Emergency Stop Buttons
Suitable for machinery and OEM panels using coordinated push buttons, selector switches, indicator lights and contact blocks.
View LAY5 Series →
XDL21 Emergency Stop Buttons
A modern industrial push button family designed for machinery requiring compact construction and multiple operator configurations.
View XDL21 Series →
Metal Emergency Stop Buttons
Compact metal emergency-stop solutions for small control panels and equipment requiring reduced panel mounting space.
View Metal E-Stop Range →
Large Mushroom E-Stop Buttons
Large mushroom actuators provide a prominent operating surface for machinery, lifting systems and industrial control stations.
Compare Options →
Key-Reset Emergency Stops
Suitable for applications where release or reset should only be performed by authorized operators or maintenance personnel.
Ask for Key-Reset Models →How to Choose the Right Emergency Stop Button
Four specifications normally determine which emergency-stop product family is suitable for your machine or panel.
Confirm Mounting Hole
Check the available panel cutout first. XINDALI offers compact and standard industrial formats.
Select Head Size
Choose the mushroom actuator diameter according to machine layout, accessibility and visibility.
Choose Reset Method
Options include twist-to-release, pull-to-release and key-reset designs.
Confirm Contacts
Select N/C, N/O + N/C or other supported contact-block combinations for the control circuit.
Emergency Stop Button Options at a Glance
| Selection Item | Available Options | Typical Application |
|---|---|---|
| Mounting Hole | 12 / 16 / 19 / 22 mm and other series formats | Compact panels to industrial machine controls |
| Mushroom Head | Approx. 30 / 40 / 50 / 60 mm | Different visibility and access requirements |
| Reset Method | Twist / Pull / Key Reset | Machine operation and maintenance requirements |
| Contacts | N/C / N/O + N/C / Multiple configurations | Industrial control circuits |
| Material | Engineering Plastic / Metal | Standard or compact equipment |
| Protection | IP65 / IP67 on selected models | Dusty, wet and industrial environments |
Emergency Stop Button vs. Mushroom Push Button
A mushroom-shaped actuator does not automatically make a push button an emergency-stop device. Emergency-stop applications normally require a suitable mechanically latching actuator and correct integration into the machine safety circuit. Momentary or spring-return mushroom buttons should be selected as control push buttons rather than assumed to be emergency-stop devices.
Need More Than an Emergency Stop Button?
XINDALI can integrate emergency stops with push buttons, selector switches, indicator lights and enclosures to supply a complete industrial control station for OEM equipment.
Typical Emergency Stop Button Applications
XINDALI emergency stop push buttons are supplied for industrial equipment manufacturers, panel builders, system integrators and replacement applications.
Emergency Stop Push Button FAQs
Common questions from machinery manufacturers, control-panel builders and industrial buyers.
What is an emergency stop push button?
What emergency stop button sizes are available?
Do you offer 22 mm emergency stop buttons?
Do you offer IP65 emergency stop buttons?
What is the difference between a mushroom button and an emergency stop button?
Can I order N/C or N/O + N/C contacts?
Can XINDALI manufacture a complete emergency stop control box?
What information should I provide for a quotation?
Not Sure Which Emergency Stop Button to Choose?
Send us your machine application and basic specifications. Our team can recommend a suitable XINDALI product family or configure a complete OEM control station.
